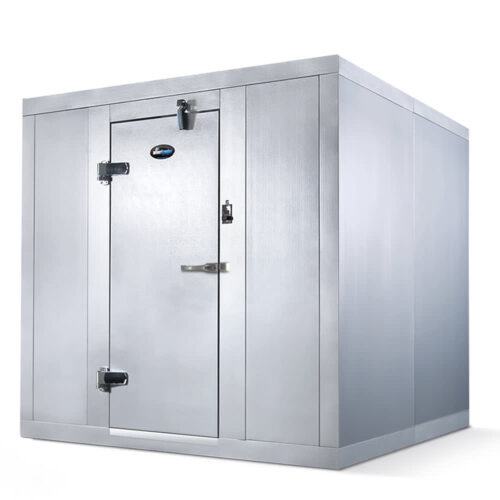

Amerikooler QC101077**FBRC-O 10' x 10' Outdoor Walk-In Cooler w/ Remote Compressor - Floor

The Amerikooler QC101077**FBRC-O outdoor walk-in cooler measures 9 feet 9³⁄₄ inches wide by 9 feet 9¹⁄₄ inches deep by 7 feet 7 inches tall and ships unassembled with modular ceiling, wall, and floor panels featuring a cam-action locking system and compression gaskets. To ease setup, it comes with a hardware and installation instruction kit, while the tongue-and-groove panels can be assembled to create an airtight structure. The panels are built with 4-inch-thick AK-XPS4 rigid foam that’s permanently bonded to the primed metal surfaces and provides R-29 thermal resistance. The wall and ceiling panel interiors and exterior are laminated with 26-gauge stucco-embossed Acrylume® for lasting corrosion resistance. To accommodate standard foot traffic, the flooring is comprised of 4-inch-thick smooth aluminum panels that can support an evenly distributed load of 600 pounds per square foot.

The 76-inch-tall entrance door features two super cam-rise spring-assisted hinges to prevent the door from dragging the floor and minimizing gasket wear. It’s also built with a spring-actuated door closer and three-sided magnetic gasket to ensure the door closely securely for a reduced risk of temperature fluctuations. So employees can safely exit a locked unit from the inside, its deadbolt keyed-handle latch features an interior safety lock release handle. Inside the unit, an LED light fixture is mounted on the door jamb, and operators can quickly turn the light on and off with the corresponding pilot light switch. A digital LED thermometer provides an accurate readout of interior temperatures.

This Amerikooler QC101077**FBRC-O outdoor walk-in cooler operates with the included Heatcraft Bohn BCH0008MBACZA0000 air-cooled condensing unit. Designed for remote installation, this piece of equipment measures 24⁶³⁄₁₀₀ inches wide by 28¹⁄₄ inches deep by 19³⁄₄ inches tall and can operate in ambient settings as hot as 90 degrees Fahrenheit. To maintain an interior temperature of 35 degrees Fahrenheit, it uses R-404A refrigerant.

Product Details

• For outdoor use
• Includes hardware and installation instruction kit to ease setup
• Modular tongue-and-groove wall, ceiling, and floor panels
• Cam-action locking system and compression gaskets
• 4-in.-thick AK-XPS4 rigid foam insulation built into panels
• Insulation provides R-29 value
• 26-ga. stucco-embossed, corrosion-resistant Acrylume laminate
• Smooth, ¹⁄₂₀-in.-thick aluminum flooring accommodates an evenly distributed load of 600 lbs. per square foot
• 76-in.-tall entrance door
• 2 heavy-duty super cam-rise spring-assisted door hinges
• 3-sided magnetic gasket, spring-actuated door closer, and double wiper
• Deadbolt keyed handle latch features interior safety lock release handle
• Center-mounted LED light fixture
• Digital LED thermometer
• Safety pilot light on/off switch
• Conduit between switch box and outlet junction box
• Includes rain roof package
• Assembly required

Refrigeration System

• Includes Heatcraft Bohn BCH0008MBACZA0000 air-cooled condenser
• For remote installation
• R-404A refrigerant
• Can maintain 35-degree-F interior temperature
• Maximum ambient temperature: 90 degrees F

Dimensions & Utilities

• Refrigeration system: 24⁶³⁄₁₀₀ in. W x 28¹⁄₄ in. D x 19³⁄₄ in. H
• Walk-in cooler: 9 ft. 9³⁄₄ in. W x 9 ft. 9¹⁄₄ in. D x 7 ft. 7 in. H
• 35 A, ³⁄₄ HP
• 208-230 V/60 Hz/1 ph, NEMA 6-15R plug

Product Features

*Free shipping on Amerikooler QC101077**FBRC-O within the 48 contiguous states.

From The Manufacturer

Outdoor Quick Ship Walk-in Cooler, 9′-9 3/4″ W x 9′-9 1/4″ L x 7′-7″ H, With Floor, 4” thick AK-XPS4 insulation providing R-29 for coolers and R-32 for freezers, ceiling & doors, insulation with 50 Year R-value warranty, 26 gauge stucco embossed corrosion resistant Acrylume on all interior & exterior surfaces, NSF aluminum floor rated at 600 Lbs./sq. ft. of uniformly distributed load, flush self-closing door with keyed heavy-duty deadbolt handle latch, digital LED thermometer with pilot light switch, super cam-rise spring assisted hinges & door closer, prewired vapor proof light fixture, Bohn outdoor remote refrigeration, 35°F, 3/4 HP, BCH0008MBACZA0000-BEL0095AS6AMAB0400 with EC motor, sized at 95°F ambient temperature, ships in 48 hours – subject to terms & conditions, UL, Made in USA (Note: Customers ordering this unit for installation in California, Florida, Oregon, and Washington may face state-specific restrictions on its use. Please contact SAH Kitchen Equipment Customer Care at 1-800-54

*Image may not depict product color, inclusions or accessories.
