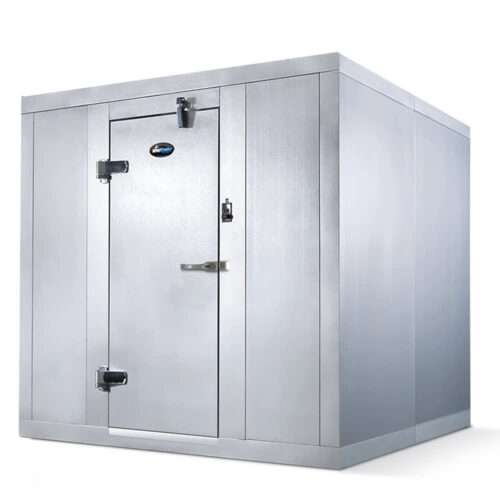

Amerikooler QF101277**FBRF 10' x 12' Indoor Walk-in Freezer w/ Remote Compressor - Floor

Ideal for businesses with the space to dedicate a bulk storage area, the Amerikooler QF101277**FBRF indoor walk-in freezer is a quick-ship configuration measuring 11 feet 9¹⁄₄ inches wide by 9 feet 9³⁄₄ inches deep by 7 feet 7 inches tall. Although it ships unassembled, its modular, tongue-and-groove floor, ceiling, and wall panels simplify setup using the corrosion-resistant cam-action locking system. These panels are insulated with 4-inch-thick AK-XPS4 rigid foam to establish a solid structure and provide an R-32 thermal resistance value to minimize energy consumption. For durability, the interior and exterior wall and ceiling panels are laminated with stucco-embossed, 26-gauge Acrylume® coating, while the floor panels are finished with smooth aluminum. To accommodate regular foot traffic, the floor can support an evenly distributed 600 pounds per square foot.

To simplify inventory loading and retrieval, this walk-in’s entrance door opens and closes smoothly because of its spring-assisted super cam-rise hinges and door closer. For secure closure, it’s built with a three-sided magnetic gasket, while a temperature-controlled heater wire minimizes the risk of frost building up along the door’s seal. An LED light is center mounted above the door jamb to brighten the box, and a digital LED thermometer provides an accurate temperature readout. To regulate changing pressure as warm air enters the unit, a heated pressure relief vent is built onto the door jamb. Operators can lock the deadbolt keyed handle after business hours, and an inside safety release system is built into the box so staff don’t become locked inside.

The Amerikooler QF101277**FBRF indoor walk-in freezer includes the Heatcraft Bohn BCH0019LBACHA0200-BEL0100BS6EEAB0400 refrigeration unit, which features an electronically commutated (EC) motor and microchannel coil technology capable of reducing energy and refrigerant consumption. This 2-horsepower unit can produce and maintain an interior box temperature of 0 degrees Fahrenheit. To save space inside the box, it can be remotely installed in ambient temperatures no hotter than95 degrees Fahrenheit. This system ships fully assembled, evacuated, charged, run tested, and wired to save time during setup.

Product Details

• Quick-ship unit designed for indoor use
• Hardware and installation instruction kit with shop drawing, detailed installation instructions, hex wrench for cam-lock panel assembly, and PVC press fit caps
• Modular, ceiling, and floor panels with tongue-and-groove structures
• Cam-action locking system and compression gaskets
• Panels insulated with 4-in.-thick AK-XPS4 rigid foam
• R-32 thermal resistance value
• Stucco-embossed, corrosion-resistant 26-ga. Acrylume coating on wall and ceiling panels
• Floor panels finished with smooth aluminum
• Floor can support 600 lbs. per square foot when weight is evenly distributed
• 30-in.-wide 76-in.-tall entrance door with super cam-rise spring-assisted hinges, door closer, 3-sided magnetic gasket, and flexible double wiper
• Lockable deadbolt key/padlock handle
• Inside safety release mechanism
• LED light above door jamb
• Safety pilot light switch
• Digital thermometer features LED temperature readout
• Heated pressure relief vent mounted on door jamb
• Temperature-controlled heater wire built into door
• Conduit between switch box and outlet junction box

Refrigeration System

• Heatcraft Bohn BCH0019LBACHA0200-BEL0100BS6EEAB0400 remote refrigeration system
• Includes EC motor
• Produces and maintains temperature of 0 degrees F
• Withstands ambient temperatures as hot as 95 degrees F
• Microchannel coil technology
• Ships fully assembled, evacuated, charged, run tested, and wired for simple installation

Dimensions & Utilities

• Walk-in freezer: 11 ft. 9¹⁄₄ in. W x 9 ft. 9³⁄₄ in. D x 7 ft. 7 in. H
• 2 HP
• 208-230 V/60 Hz/1 ph

Product Features

*Free shipping on Amerikooler QF101277**FBRF within the 48 contiguous states.

From The Manufacturer

Quick Ship Indoor Walk-In Freezer, 9′-9 3/4″ W x 11′-9 1/4″ L x 7′-7″ H, With Floor, 4” thick AK-XPS4 insulation providing R-29 for coolers & R-32 for freezers, 26 gauge stucco embossed corrosion resistant acrylic coated Acrylume on all interior & exterior surfaces, NSF aluminum floor rated at 600 Lbs./sq. ft. of uniformly distributed load, flush self-closing door, digital LED thermometer with pilot light switch, super cam-rise spring assisted hinges & door closer, Bohn outdoor remote refrigeration, 0°F, 2 HP, BCH0019LBACHA0200-BEL0100BS6EEAB0400 with EC motor, sized at 95°F ambient temperature, ships in 48 hours – subject to terms & conditions, UL, Made in USA (Note: Customers ordering this unit for installation in California, Florida, Oregon, and Washington may face state-specific restrictions on its use. Please contact SAH Kitchen Equipment Customer Care at 1-800-541-8683 for assistance.)

*Image may not depict product color, inclusions or accessories.
