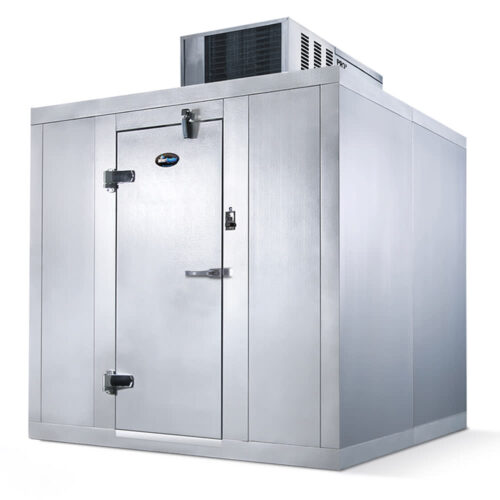

Amerikooler QF081077**FBSM 8' x 10' Indoor Walk-In Freezer w/ Top-Mounted Compressor - Floor

To hold frozen foods at -10 degrees Fahrenheit, the Amerikooler QF081077**FBSM indoor walk-in freezer comes with the Heatcraft Bohn PT0069LBNEMSA refrigeration system, which combines a unit cooler and condensing unit to reduce the required refrigerant charge and ease setup. While this 55-inch-wide by 49¹⁄₂-inch-deep by 32²⁄₅-inch-tall unit can be placed on top of the box to conserve storage space, it shouldn’t be exposed to ambient temperatures hotter than 90 degrees Fahrenheit. To retain generated temperatures, the unit’s panels are insulated with 4-inch-thick AK-XPS4 rigid foam, which provides R-32 thermal resistance. For efficiency, the refrigeration system is built with microchannel coil technology, a two-speed evaporator fan motor, and an electric defrost mechanism.

For simple setup, this unit comes with an installation instruction and hardware kit, including PVC press fit caps, a hex wrench, a shop drawing, and detailed installation instructions. Its wall, ceiling, and floor panels sport tongue-and-groove designs that can be interconnected with the cam-action locking system and compression gaskets. For lasting corrosion resistance, the ceiling and wall panels are laminated with stucco-embossed Acrylume® coating. The floor’s thin layer of aluminum finish establishes a sleek, smooth surface that can accommodate 600 pounds per square foot when the weight is evenly distributed.

Because the Amerikooler QF081077**FBSM walk-in freezer’s 76-inch-tall door is built with spring-assisted super cam-rise hinges, a three-sided magnetic gasket, and a door closer, it opens and closes smoothly. To prevent the door’s seal from frosting over, a temperature-controlled heater wire is built into the door. Inside the unit, an LED light brightens the space, while a digital thermometer provides an accurate temperature readout. To account for changes in pressure due to temperature fluctuations, a heated pressure relief vent is mounted on the door jamb. Operators can lock the keyed deadbolt handle after business hours, and to minimize the risk of staff becoming trapped inside the unit, it’s built with an inside safety release mechanism.

Product Details

• Quick-ship unit designed for indoor placement
• Includes modular, tongue-and-groove wall, ceiling, and floor panels that can be connected with cam-action locking system and compression gaskets
• Hardware and installation instruction kit with shop drawing, detailed installation instructions, hex wrench for cam-lock panel assembly, and PVC press fit caps
• 4-in.-thick AK-XPS4 rigid foam insulation built into panels
• Insulation provides R-32 thermal resistance value
• Ceiling and wall panels laminated with stucco-embossed, corrosion-resistant 26-ga. Acrylume coating
• Smooth aluminum finish on floor panels
• Floor can accommodate an evenly distributed load of 600 lbs. per square foot
• 30-in.-wide x 76-in.-tall entrance door with super cam-rise spring-assisted hinges, door closer, 3-sided magnetic gasket, and flexible double wiper
• Lockable deadbolt key/padlock handle
• Inside safety release mechanism
• LED light located above door jamb
• Safety pilot light switch
• Digital thermometer features LED temperature readout
• Heated pressure relief vent mounted on door jamb
• Temperature-controlled heater wire built into door
• Conduit between switch box and outlet junction box

Refrigeration System

• Heatcraft Bohn PT0069LBNEMSA top-mounted refrigeration system
• Combines unit cooler and condensing unit
• Ships fully assembled, evacuated, charged, run tested, and wired for simple installation
• R-448A refrigerant
• Produces and maintains temperature of -10 degrees F
• Maximum ambient temperature: 90 degrees F
• 2-speed electronically commutated evaporator fan motor
• Electric defrost
• Microchannel coil technology

Dimensions & Utilities

• Refrigeration unit: 55 in. W x 49¹⁄₂ in. D x 32²⁄₅ in. H
• Walk-in freezer: 9 ft. 9¹⁄₄ in. W x 7 ft. 10 in. D x 7 ft. 7 in. H
• 16.74 A
• 208-230 V/60 Hz/1 ph

Product Features

*Free shipping on Amerikooler QF081077**FBSM within the 48 contiguous states.

From The Manufacturer

Quick Ship Indoor Walk-In Freezer, 7′-10″ W x 9′-9 1/4″ L x 7′-7″ H, With Floor, 4” thick AK-XPS4 insulation providing R-29 for coolers & R-32 for freezers, 26 gauge stucco embossed corrosion resistant acrylic coated Acrylume on all interior & exterior surfaces, NSF aluminum floor rated at 600 Lbs./sq. ft. of uniformly distributed load, flush self-closing door, digital LED thermometer with pilot light switch, super cam-rise spring assisted hinges & door closer, -10°F, top mount, self-contained, indoor refrigeration, PT0069LBNEMSA, sized at 90°F ambient temperature, ships in 48 hours – subject to terms & conditions, UL, Made in USA (Note: Customers ordering this unit for installation in California, Florida, Oregon, and Washington may face state-specific restrictions on its use. Please contact SAH Kitchen Equipment Customer Care at 1-800-541-8683 for assistance.)

*Image may not depict product color, inclusions or accessories.
