Amerikooler QF061277**FBSM-O Description

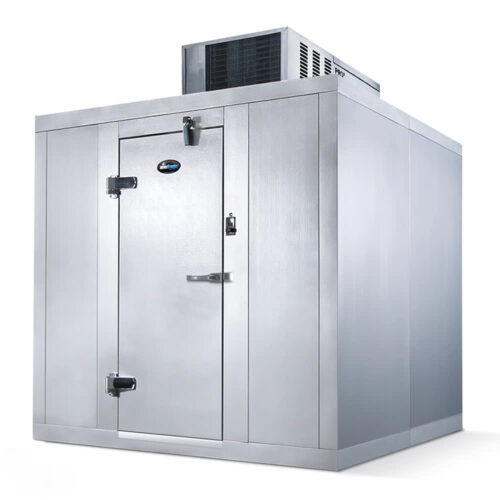

The Amerikooler QF061277**FBSM-O outdoor walk-in freezer is a quick-ship unit, meaning it’s constructed based on pre-engineered dimensions to eliminate the need for operators to create a custom walk-in. Great for businesses unable to accommodate an indoor walk-in freezer, this 11-foot-91⁄4-inch-wide by 5-foot-105⁄8-inch-deep by 7-foot-7-inch-tall unit is designed to withstand outdoor use. Its wall, ceiling, and floor panels are made of 4-inch-thick AK-XPS4 insulation that provides an R-32 thermal resistance value and creates a sturdy structure. The wall and ceiling panels’ interiors and exteriors are laminated with stucco-embossed, 26-gauge Acrylume® coated with corrosion-resistant acrylic paint. These panels can be secured together with the corrosion-resistant cam-action locking system and compression gaskets.
The floor panels are finished with smooth aluminum that provides a sleek, even surface, and to accommodate regular foot traffic, the floor can support an evenly distributed load of 600 pounds per square foot. Inside the walk-in, an LED light above the door jamb illuminates the area, while a digital thermometer provides an easy-to-read LED temperature display. Because it’s built with super cam-rise spring-assisted hinges, a door closer, a three-sided magnetic gasket, and a temperature-controlled heater wire, the 76-inch-tall entrance door opens smoothly and closes with a frost-free seal. As the door is opened, the heated pressure relief vent above the door jamb reduces built-up pressure from warm air. Operators can lock the entrance door’s keyed deadbolt handle, and if employees become locked inside the unit, they can exit using the safety release mechanism.
To maintain a box temperature of -10 degrees Fahrenheit, the Amerikooler QF061277**FBSM-O outdoor walk-in freezer is equipped with the Heatcraft Bohn PT0069LBTEMSA PRO3 refrigeration unit. This 58-inch-wide by 521⁄2-inch-deep by 403⁄4-inch-tall unit can be mounted on top of the walk-in and shouldn’t be installed in environments that exceed 90 degrees Fahrenheit. Its microchannel coil technology minimizes energy and refrigerant usage, while its two-speed evaporator fan motor and electric defrost mechanism enhance efficiency.
Product Details
- For outdoor placement
- Quick-ship configuration
- Hardware and installation instruction kit includes shop drawing, detailed installation instructions, hex wrench for cam-lock panel assembly, and PVC press fit caps to ease setup
- Modular floor, wall, and ceiling panels with tongue-and-groove designs
- Cam-action locking system and compression gaskets
- 4-in.-thick AK-XPS4 rigid foam insulation built into panels
- Insulation provides R-32 thermal resistance value
- Wall and ceiling panels’ interiors and exteriors are laminated with stucco-embossed, corrosion-resistant 26-ga. Acrylume coating
- Smooth aluminum floor finish
- Floor accommodates an evenly distributed load of 600 lbs. per square foot
- 30-in.-wide x 76-in.-tall entrance door with super cam-rise spring-assisted hinges, door closer, 3-sided magnetic gasket, and flexible double wiper
- Lockable deadbolt key/padlock handle
- Inside safety release mechanism
- LED light above door jamb
- Safety pilot light switch
- Digital thermometer features LED temperature readout
- Heated pressure relief vent above door jamb
- Temperature-controlled heater wire built into door
- Conduit between switch box and outlet junction box
Refrigeration System
- Heatcraft Bohn PT0069LBNEMSA top-mounted refrigeration unit
- Operates as a unit cooler and condensing unit
- R-448A refrigerant
- Generates -10-degree-F box temperature
- Maximum ambient temperature: 90 degrees F
- Ships fully assembled, evacuated, charged, run tested, and wired
- Microchannel coil technology
- 2-speed EC evaporator fan motor
- Electric defrost
Dimensions & Utilities
- Refrigeration system: 58 in. W x 521⁄2 in. D x 403⁄4 in. H
- Walk-in freezer: 11 ft. 91⁄4 in. W x 5 ft. 105⁄8 in. D x 7 ft. 7 in. H
- 16.74 A
- 208-230 V/60 Hz/1 ph
Product Features
*Free shipping on Amerikooler QF061277**FBSM-O within the 48 contiguous states.
From The Manufacturer
Quick Ship Outdoor Walk-In Freezer, 5′-10 5/8″ W x 11′-9 1/4″ L x 7′-7″ H, With Floor, 4” thick AK-XPS4 insulation providing R-29 for coolers & R-32 for freezers, 26 gauge stucco embossed corrosion resistant acrylic coated Acrylume on all interior & exterior surfaces, NSF aluminum floor rated at 600 Lbs./sq. ft. of uniformly distributed load, flush self-closing door, digital LED thermometer with pilot light switch, super cam-rise spring assisted hinges & door closer, -10°F, top mount, self-contained, Outdoor refrigeration, PT0069LBTEMSA, sized at 90°F ambient temperature, ships in 48 hours – subject to terms & conditions, UL, Made in USA (Note: Customers ordering this unit for installation in California, Florida, Oregon, and Washington may face state-specific restrictions on its use. Please contact SAH Kitchen Equipment Customer Care at 1-800-541-8683 for assistance.)
*Image may not depict product color, inclusions or accessories.
Certifications
This product meets the safety standards set by UL.
