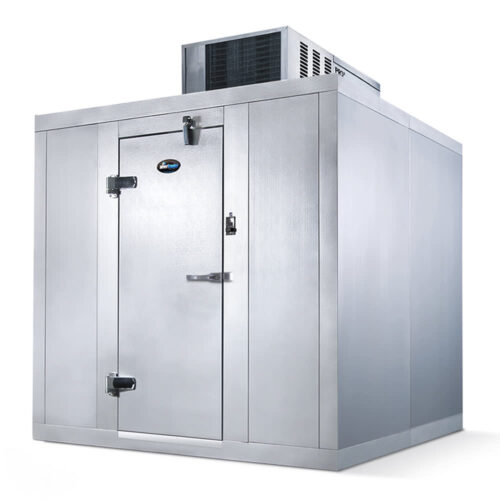

Amerikooler QF061077**FBSM-O 6' x 10' Outdoor Walk-In Freezer w/ Top-Mounted Compressor - Floor

Engineered for simple setup, the Amerikooler QF061077**FBSM-O outdoor walk-in freezer is a quick-ship unit equipped with modular, tongue-and-groove wall, ceiling, and floor panels; an installation and hardware kit; and a preassembled refrigeration system. Great for businesses with limited indoor space, this 9-foot-9¹⁄₄-inch-wide by 5-foot-10⁵⁄₈-inch-deep by 7-foot-7-inch-tall unit can withstand outdoor use. Its wall, floor, and ceiling panels are made of 4-inch-thick AK-XPS4 insulation, which adds rigidity to the panels’ frames and provides an R-32 thermal resistance value. The wall and ceiling panels’ exterior and interiors are laminated with stucco-embossed Acrylume® coated with a corrosion-resistant acrylic paint. The aluminum finish on the floor panels establishes a smooth, level surface, and to accommodate regular foot traffic, these panels can support 600 pounds per square foot.

This freezer’s interior LED light brightens the storage space to ensure users have full visibility of the area to quickly assess inventory. To ensure products are held at safe temperature, the digital thermometer provides an accurate LED temperature readout. Staff can simply enter and exit the freezer using the 76-inch-tall entrance door featuring super cam-rise, spring-assisted door hinges that elevate the door to ensure smooth opening and closing, while its door closer and three-sided magnetic gasket enable secure self-closure. To maintain the pressure inside the unit and remove warm air that comes in as the door is opened, a heated pressure relief vent is built above the door jamb. A temperature-controlled heater wire built onto the door ensures the door closes securely without frost buildup.

To maintain a box temperature of -10 degrees Fahrenheit, the Amerikooler QF061077**FBSM-O outdoor walk-in freezer is equipped with the Heatcraft Bohn PT0062LBTEMSA refrigeration unit. This system combines a condensing unit and unit cooler to simplify setup and reduce the required refrigerant charge. To maximize available storage space, the 58-inch-wide by 52¹⁄₂-inch-deep by 40³⁄₄-inch-tall box is designed to be mounted on top of the box, and for efficiency, it shouldn’t be installed in areas that exceed 90 degrees Fahrenheit.

Product Details

• Quick-ship outdoor unit
• Includes hardware and installation instruction kit (shop drawing, detailed installation instructions, hex wrench for cam-lock panel assembly, and PVC press fit caps)
• Modular, tongue-and-groove floor, wall, and ceiling panels
• Cam-action locking system and compression gaskets create airtight seal
• 4-in.-thick AK-XPS4 rigid foam insulation built into panels provides R-32 thermal resistance value
• Wall and ceiling panels laminated with stucco-embossed 26-ga. Acrylume coating with corrosion-acrylic paint
• Smooth aluminum floor finish
• Floor can hold an evenly distributed load of 600 lbs. per square foot
• 30-in.-wide x 76-in.-tall entrance door with super cam-rise spring-assisted hinges, door closer, 3-sided magnetic gasket, and flexible double wiper
• Lockable deadbolt key/padlock handle
• Safety inside release mechanism
• LED light positioned above door jamb
• Safety pilot light switch
• Digital thermometer with LED temperature readout
• Heated pressure relief vent regulates inside pressure and removes warm air
• Temperature-controlled heater wire reduces risk of door seal frosting
• Conduit between switch box and outlet junction box

Refrigeration System

• Heatcraft Bohn PT0062LBTEMSA PRO³ refrigeration unit
• Top-mounted, air-cooled design
• R-448A refrigerant
• Produces and maintains -10-degree-F box temperature
• Maximum ambient temperature: 90 degrees F
• Ships fully assembled, evacuated, charged, run tested, and wired
• Microchannel coil technology
• 2-speed EC evaporator fan motor
• Electric defrost

Dimensions & Utilities

• Refrigeration system: 58 in. W x 52¹⁄₂ in. D x 40³⁄₄ in. H
• Walk-in freezer: 9 ft. 9¹⁄₄ in. W x 5 ft. 10⁵⁄₈ in. D x 7 ft. 7 in. H
• 16.48 A
• 208-230 V/60 Hz/1 ph

Product Features

*Free shipping on Amerikooler QF061077**FBSM-O within the 48 contiguous states.

From The Manufacturer

Quick Ship Outdoor Walk-In Freezer, 5′-10 5/8″ W x 9′-9 1/4″ L x 7′-7″ H, With Floor, 4” thick AK-XPS4 insulation providing R-29 for coolers & R-32 for freezers, 26 gauge stucco embossed corrosion resistant acrylic coated Acrylume on all interior & exterior surfaces, NSF aluminum floor rated at 600 Lbs./sq. ft. of uniformly distributed load, flush self-closing door, digital LED thermometer with pilot light switch, super cam-rise spring assisted hinges & door closer, -10°F, top mount, self-contained, Outdoor refrigeration, PT0062LBTEMSA, sized at 90°F ambient temperature, ships in 48 hours – subject to terms & conditions, UL, Made in USA (Note: Customers ordering this unit for installation in California, Florida, Oregon, and Washington may face state-specific restrictions on its use. Please contact SAH Kitchen Equipment Customer Care at 1-800-541-8683 for assistance.)

*Image may not depict product color, inclusions or accessories.
