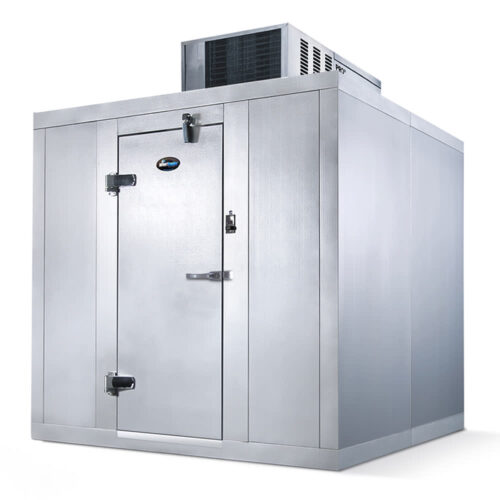

Amerikooler QF061077**FBSM 6' x 10' Indoor Walk-In Freezer w/ Top-Mounted Compressor - Floor

The Amerikooler QF061077**FBSM indoor walk-in freezer measures 9 feet 9¹⁄₄ inches wide by 5 feet 10⁵⁄₈ inches deep by 7 feet 7 inches tall, providing ample space to accommodate bulk perishables. Because it’s a quick-ship unit, it’s simple to set up and includes an installation and hardware kit with a shop drawing, detailed installation instructions, a hex wrench for cam-lock panel assembly, and PVC press fit caps. Its tongue-and-groove modular wall, ceiling, and floor panels can be secured with the corrosion-resistant cam-action locking system and compression gaskets. For rigidity and R-32 thermal resistance, each panel is insulated with 4-inch-thick AK-XPS4 foam. While the wall and ceiling panels are laminated with corrosion-resistant, stucco-embossed Acrylume®, the floor is finished with smooth aluminum.

To withstand regular foot traffic, the walk-in’s flooring can support an evenly distributed 600 pounds per square foot. The interior is illuminated with an LED light center-mounted above the door jamb; operators can turn the light on and off with the corresponding pilot light. A digital thermometer displays a readout of the box’s temperature so operators can ensure frozen products are stored at ideal temperatures. To prevent the door seal from freezing, a temperature-controlled heater wire is built onto the door, while a heated pressure relief vent is built onto the door jamb. Staff can enter and exit the freezer via the 76-inch-tall hinged entrance door, which opens and closes smoothly because of its integrated spring-assisted hinges and door closer. After business hours, its keyed deadbolt handle can be locked, and in the event an employee becomes locked inside the unit, they can use the inside safety release mechanism to exit the freezer.

The Amerikooler QF061077**FBSM walk-in freezer’s included Heatcraft Bohn PT0062LBNEMSA PRO³ refrigeration system measures 55 inches wide by 49¹⁄₂ inches deep by 32²⁄₅ inches tall and can be placed on top of the unit to free up space inside the box. This top-mounted, air-cooled unit combines the properties of a unit cooler and condensing unit to simplify setup and reduce required refrigerant charge. To produce and maintain a box temperature of -10 degrees Fahrenheit, it operates with R-448A refrigerant and shouldn’t be installed in areas exceeding 90 degrees Fahrenheit. While its microchannel coil technology minimizes energy and refrigerant usage, its two-speed evaporator fan motor and electric defrost enhance efficiency.

Product Details

• Quick-ship indoor unit with flooring
• Includes hardware and installation instruction kit
• Modular, tongue-and-groove floor, wall, and ceiling panels can be connected with cam-action locking system and compression gaskets
• 4-in.-thick AK-XPS4 rigid foam insulation built into panels
• Insulation provides R-32 thermal resistance value
• Wall and ceiling panels laminated with stucco-embossed 26-ga. Acrylume coating for corrosion-resistant durability
• Smooth aluminum floor finish
• Floor can hold an evenly distributed load of 600 lbs. per square foot
• 30-in.-wide x 76-in.-tall entrance door with super cam-rise spring-assisted hinges, door closer, 3-sided magnetic gasket, and flexible double wiper
• Lockable deadbolt key/padlock handle
• Safety inside release mechanism
• LED light above door jamb
• Safety pilot light switch
• Digital thermometer with LED temperature readout
• Heated pressure relief vent on door jamb
• Temperature-controlled heater wire on door
• Conduit between switch box and outlet junction box

Refrigeration System

• Heatcraft Bohn PT0062LBNEMSA refrigeration unit
• Top-mounted, air-cooled configuration
• R-448A refrigerant
• Maintains -10-degree-F box temperature
• Maximum ambient temperature: 90 degrees F
• Microchannel coil technology reduces refrigerant usage and energy consumption
• 2-speed EC evaporator fan motor
• Electric defrost
• Ships fully assembled, evacuated, charged, run tested, and wired

Dimensions & Utilities

• Refrigeration system: 55 in. W x 49¹⁄₂ in. D x 32²⁄₅ in. H
• Walk-in freezer: 9 ft. 9¹⁄₄ in. W x 5 ft. 10⁵⁄₈ in. D x 7 ft. 7 in. H
• 16.48 A
• 208-230 V/60 Hz/1 ph

Product Features

*Free shipping on Amerikooler QF061077**FBSM within the 48 contiguous states.

From The Manufacturer

Quick Ship Indoor Walk-In Freezer, 5′-10 5/8″ W x 9′-9 1/4″ L x 7′-7″ H, With Floor, 4” thick AK-XPS4 insulation providing R-29 for coolers & R-32 for freezers, 26 gauge stucco embossed corrosion resistant acrylic coated Acrylume on all interior & exterior surfaces, NSF aluminum floor rated at 600 Lbs./sq. ft. of uniformly distributed load, flush self-closing door, digital LED thermometer with pilot light switch, super cam-rise spring assisted hinges & door closer, -10°F, top mount, self-contained, indoor refrigeration, PT0062LBNEMSA, sized at 90°F ambient temperature, ships in 48 hours – subject to terms & conditions, UL, Made in USA (Note: Customers ordering this unit for installation in California, Florida, Oregon, and Washington may face state-specific restrictions on its use. Please contact SAH Kitchen Equipment Customer Care at 1-800-541-8683 for assistance.)
