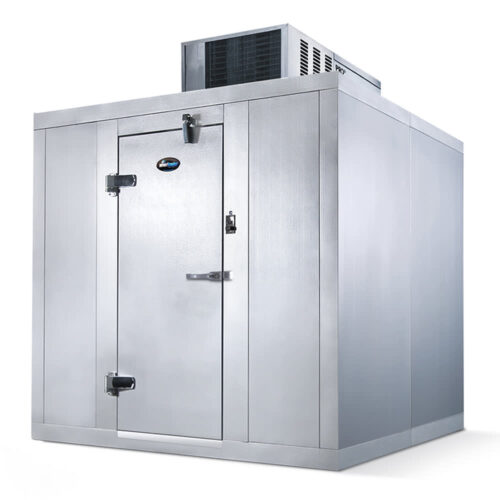

Amerikooler QF060877**FBSM-O 6' x 8' Outdoor Walk-In Freezer w/ Top-Mounted Compressor - Floor

To store frozen foods in a safe environment, the Amerikooler QF060877**FBSM-O outdoor walk-in freezer is equipped with the Heatcraft Bohn PT0062LBTEMSA refrigeration system capable of achieving and maintaining a box temperature of -10 degrees Fahrenheit. This top-mounted, air-cooled unit operates with a two-speed electrically commutated evaporator fan motor, features an electric defrost mechanism, and is built with microchannel coils to minimize refrigerant use. For efficiency, it shouldn’t be used in areas exceeding 90 degrees Fahrenheit.

When fully assembled, this walk-in measures 7 feet 9¹⁄₄ inches wide by 5 feet 10⁵⁄₈ inches deep by 7 feet 7 inches tall. Its modular, tongue-and-groove wall, ceiling, and floor panels can be secured together with the corrosion-resistant cam-action locking system, and for an airtight seal, they include compression gaskets. All panels are built with 4-inch-thick AK-XPS4 insulation to provide an R-32 thermal resistance value and fortify the structure. To create a classic appearance without sacrificing corrosion-resistant durability, the wall and ceiling panels feature stucco-embossed 26-gauge Acrylume® coating on their interiors and exteriors. To establish a sturdy, level surface, the floor panels are finished with smooth aluminum and can support an evenly distributed load of 600 pounds per square foot.

For an ideal environment, the Amerikooler QF060877**FBSM-O walk-in freezer’s door jamb is equipped with a heated pressure relief vent, while the door features a temperature-controlled heater wire to prevent the door seal from frosting. The 76-inch-tall entrance door is built with spring-assisted super cam-rise hinges to enhance mobility and a door closer, three-sided magnetic gasket, and flexible double wiper for secure closure. The keyed deadbolt handle can be locked after business hours, and to provide an exit route for staff locked inside the unit, the interior includes a safety release mechanism. While the LED-lighted interior enables operators to gauge inventory at a glance, the digital thermometer provides an accurate readout of the box temperature.

Product Details

• Outdoor configuration with smooth aluminum flooring
• Includes hardware and installation instruction kit to simplify setup
• Modular floor, wall, and ceiling panels with tongue-and-groove designs
• Cam-action locking system and compression gaskets
• Panels insulated with 4-in.-thick AK-XPS4 rigid foam
• R-32 thermal resistance value
• Corrosion-resistant, stucco-embossed 26-ga. Acrylume coating laminated onto wall and ceiling panels’ interiors and exteriors
• Floor can support a uniformly distributed load of 600 lbs. per square foot
• Smooth aluminum floor finish
• 30-in-wide x 76-in.-tall by entrance door with super cam-rise spring-assisted hinges, door closer, 3-sided magnetic gasket, and flexible double wiper
• Lockable deadbolt key/padlock handle
• Interior safety release mechanism
• Center-mounted LED light
• Safety pilot light switch
• Digital thermometer
• Heated pressure relief vent on door jamb
• Temperature-controlled heater wire on door
• Conduit between switch box and outlet junction box

Refrigeration System

• Heatcraft Bohn PT0062LBTEMSA top-mount refrigeration unit
• R-448A refrigerant
• Maintains -10-degree-F interior
• Maximum ambient temperature: 90 degrees F
• Microchannel coil technology reduces refrigerant charge
• 2-speed EC evaporator fan motor
• Electric defrost
• Ships fully assembled, evacuated, charged, run tested, and wired

Dimensions & Utilities

• Refrigeration system: 58 in. W x 52¹⁄₂ in. D x 40³⁄₄ in. H
• Walk-in freezer: 7 ft. 9¹⁄₄ in. W x 5 ft. 10⁵⁄₈ in. D x 7 ft. 7 in. H
• 16.48 A
• 208-230 V/60 Hz/1 ph

Product Features

*Free shipping on Amerikooler QF060877**FBSM-O within the 48 contiguous states.

From The Manufacturer

Quick Ship Outdoor Walk-In Freezer, 5′-10 5/8″ W x 7′-9 1/4″ L x 7′-7″ H, With Floor, 4” thick AK-XPS4 insulation providing R-29 for coolers & R-32 for freezers, 26 gauge stucco embossed corrosion resistant acrylic coated Acrylume on all interior & exterior surfaces, NSF aluminum floor rated at 600 Lbs./sq. ft. of uniformly distributed load, flush self-closing door, digital LED thermometer with pilot light switch, super cam-rise spring assisted hinges & door closer, -10°F, top mount, self-contained, Outdoor refrigeration, PT0062LBTEMSA, sized at 90°F ambient temperature, ships in 48 hours – subject to terms & conditions, UL, Made in USA (Note: Customers ordering this unit for installation in California, Florida, Oregon, and Washington may face state-specific restrictions on its use. Please contact SAH Kitchen Equipment Customer Care at 1-800-541-8683 for assistance.)

*Image may not depict product color, inclusions or accessories.
