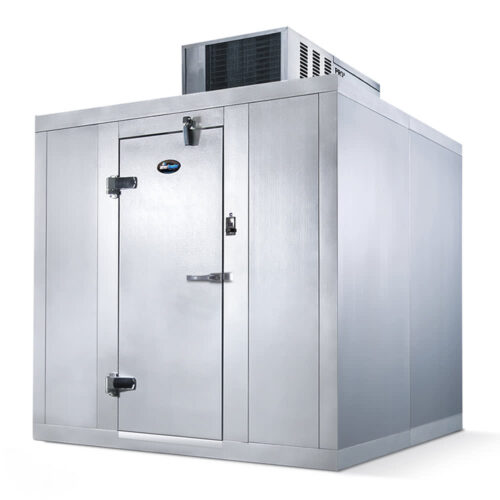

Amerikooler QF060877**FBSM 6' x 8' Indoor Walk-In Freezer w/ Top-Mounted Compressor - Floor

To provide a convenient indoor storage space for bulk amounts of refrigerated items, the Amerikooler QF060877**FBSM quick-ship indoor walk-in freezer measures 7 feet 9¹⁄₄ inches wide by 5 feet 10⁵⁄₈ inches deep by 7 feet 7 inches tall. The freezer ships with the Heatcraft Bohn PT0062LBNEMSA PRO³ top-mounted, air-cooled refrigeration system, combining a unit cooler and condenser to facilitate installation and minimize required refrigerant charge. This 55-inch-wide by 49¹⁄₂-inch-deep by 32²⁄₅-inch-tall system ships fully assembled, evacuated, charged, run tested, and wired to simplify installation; it shouldn’t be installed in areas exceeding 90 degrees Fahrenheit. It operates with R-448A refrigerant to produce and maintain temperatures as low as -10 degrees Fahrenheit, and for efficiency, it features a two-speed evaporator fan motor, electric defrost, and microchannel coil technology.

Operators can assemble the included modular tongue-and-groove wall, ceiling, and floor panels using the cam-action locking system and compression gaskets. Each panel is comprised of 4-inch-thick AK-XPS4 insulation that establishes a rigid structure and provides an R-32 thermal resistance value to minimize energy consumption. While the wall and ceiling panels feature interiors and exteriors laminated with stucco-embossed 26-gauge Acrylume®, the floor panels are finished with smooth aluminum. To accommodate regular foot traffic, the flooring can support an evenly distributed load of 600 pounds per square foot.

So there is ample clearance for users to load inventory, the Amerikooler QF060877**FBSM walk-in freezer’s entrance door measures 76 inches tall. Because it’s fitted with super cam-rise spring-assisted hinges, a door closer, three-sided magnetic gasket, and a flexible double wiper, the flush-mounted door opens and closes smoothly. An LED light illuminates the storage space to enhance visibility, while a digital thermometer provides a bold LED readout of box temperature so staff can ensure contents are held within the desired temperature range. A heated pressure relief vent is built onto the door jamb, and a temperature-controlled heater wire is built onto the door to ensure the door seal doesn’t frost over. Operators can lock this unit’s keyed deadlock handle after business hours, while an inside safety release mechanism provides a safe exit in the case staff becomes locked inside.

Product Details

• Indoor unit with flooring
• Includes hardware and installation instruction kit (shop drawing, detailed installation instructions, hex wrench for cam-lock panel assembly, and PVC press fit caps)
• Modular floor, wall, and ceiling panels insulated with 4-in.-thick AK-XPS4 rigid foam that provides R-32 thermal resistance value
• Cam-action locking system and compression gaskets
• Wall and ceiling panels’ interiors and exteriors laminated with corrosion-resistant, stucco-embossed 26-ga. Acrylume coating
• Smooth aluminum finish on floor panels
• Floor can support 600 lbs. per square foot when weight is uniformly distributed
• 30-in.-wide x 76-in.-tall swing-type, flush-mount entrance door with super cam-rise spring-assisted hinges, door closer, 3-sided magnetic gasket, and flexible double wiper
• Deadbolt key/padlock handle
• Safety inside release mechanism
• Center-mounted LED light
• Safety pilot light switch
• Digital thermometer
• Conduit between switch box and outlet junction box
• Heated pressure relief vent on door jamb
• Temperature-controlled heater wire on door

Refrigeration System

• Heatcraft Bohn PT0062LBNEMSA top-mount, air-cooled refrigeration unit
• Can generate box temperature of -10 degrees F
• Maximum ambient temperature: 90 degrees F
• R-448A refrigerant
• 2-speed EC evaporator fan motor
• Microchannel coil technology for reduced refrigerant charge
• Electric defrost
• Ships fully assembled, evacuated, charged, run tested, and wired

Dimensions & Utilities

• Refrigeration system: 55 in. W x 49¹⁄₂ in. D x 32²⁄₅ in. H
• Walk-in freezer: 7 ft. 9¹⁄₄ in. W x 5 ft. 10⁵⁄₈ in. D x 7 ft. 7 in. H
• 16.48 A
• 208-230 V/60 Hz/1 ph

Product Features

*Free shipping on Amerikooler QF060877**FBSM within the 48 contiguous states.

From The Manufacturer

Quick Ship Indoor Walk-In Freezer, 5′-10 5/8″ W x 7′-9 1/4″ L x 7′-7″ H, With Floor, 4” thick AK-XPS4 insulation providing R-29 for coolers & R-32 for freezers, 26 gauge stucco embossed corrosion resistant acrylic coated Acrylume on all interior & exterior surfaces, NSF aluminum floor rated at 600 Lbs./sq. ft. of uniformly distributed load, flush self-closing door, digital LED thermometer with pilot light switch, super cam-rise spring assisted hinges & door closer, -10°F, top mount, self-contained, indoor refrigeration, PT0062LBNEMSA, sized at 90°F ambient temperature, ships in 48 hours – subject to terms & conditions, UL, Made in USA (Note: Customers ordering this unit for installation in California, Florida, Oregon, and Washington may face state-specific restrictions on its use. Please contact SAH Kitchen Equipment Customer Care at 1-800-541-8683 for assistance.)

*Image may not depict product color, inclusions or accessories.
