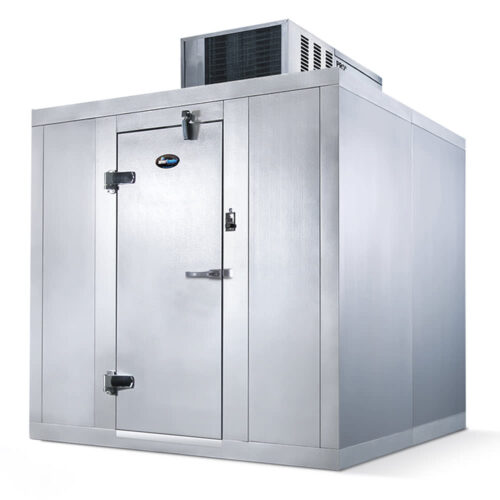

Amerikooler QF060677**FBSM 6' x 6' Indoor Walk-In Freezer w/ Top-Mounted Compressor - Floor

To simplify setup, the Amerikooler QF060677**FBSM quick-ship indoor walk-in freezer is equipped with interlocking wall, ceiling, and floor panels, an installation and hardware kit, and a top-mount Heatcraft Bohn PT0042LBNEMSA PRO³ refrigeration system. When fully assembled, this walk-in measures 5 feet 10¹⁄₈ inches wide by 5 feet 10⁵⁄₈ inches deep by 7 feet 7 inches high. Its wall, floor, and ceiling panels are modular and can be secured together with the corrosion-resistant cam-action locking system and compression gaskets, establishing an airtight seal. Because they’re made of 4-inch-thick AK-XPS4 insulation, they provide a rigid structure and an R-32 thermal resistance value. The wall and ceiling panels’ interiors and exteriors are laminated with stucco-embossed, 26-gauge Acrylume®, which is coated with a corrosion-resistant acrylic paint. The floor’s smooth aluminum surface establishes a level storage area and can support a uniformly distributed load of 600 pounds per square foot—enough to accommodate regular foot traffic.

Staff can simply enter and exit the walk-in with the 76-inch-tall hinged, self-closing door. Its two super cam-rise spring-assisted hinges can be adjusted to ensure smooth opening, while its door closer, three-sided magnetic gasket, and flexible double wiper ensure secure closure. A digital thermometer provides an LED temperature readout so staff can determine if products are being held at a safe temperature, and a center-mounted LED light positioned above the door jamb illuminates the storage space for quick product identification. During non-business hours, the keyed deadbolt handle can be locked, and to prevent users from getting locked inside, it’s fitted with an inside safety release mechanism.

The Amerikooler QF060677**FBSM walk-in freezer includes the Heatcraft Bohn PT0042LBNEMSA packaged top-mounted refrigeration system, which ships fully assembled, evacuated, charged, run tested, and wired. This unit combines a cooler and condensing unit to facilitate installation and minimize the required refrigerant charge. To achieve and maintain a box temperature of -10 degrees Fahrenheit, it operates with R-448A refrigerant and should be placed in areas that don’t exceed 90 degrees Fahrenheit. For efficiency, it features a two-speed electronically commutated evaporator (EC) fan motor and an electric defrost mechanism; this refrigeration system measures 55 inches wide by 36 inches deep by 32²⁄₅ inches tall.

Product Details

• Indoor unit with flooring
• Comes with hardware and installation instruction kit (shop drawing, detailed installation instructions, hex wrench for cam-lock panel assembly, and PVC press fit caps)
• Cam-action locking system and compression gaskets interconnect modular floor, wall, and ceiling panels
• Panels built with 4-in.-thick AK-XPS4 rigid foam insulation that provides R-32 thermal resistance value
• Exterior and interior wall and ceiling panels laminated with stucco-embossed, corrosion-resistant 26-ga. Acrylume coating
• Smooth aluminum finish on floor panels
• Floor can support an evenly distributed load of 600 lbs. per square foot
• 30-in.-wide x 76-in.-tall swing-type, flush-mount entrance door
• 2 adjustable, super cam-rise spring-assisted hinges
• Secure door closure with door closer, 3-sided magnetic gasket, and flexible double wiper
• Deadbolt key/padlock handle with safety inside release mechanism
• LED light positioned above door jamb
• Safety pilot light switch
• Digital thermometer
• Conduit between switch box and outlet junction box
• Heated pressure relief vent on door jamb
• Temperature-controlled heater wire on door

Refrigeration System

• Heatcraft Bohn PT0042LBNEMSA refrigeration unit combines a unit cooler and condensing unit
• 2-speed EC evaporator fan motor
• Air cooled
• Maximum ambient temperature: 90 degrees F
• Produces and maintains box temperature of -10 degrees F
• R-448A refrigerant
• Microchannel coil technology reduces energy and refrigerant consumption
• Electric defrost
• Ships fully assembled, evacuated, charged, run tested, and wired

Dimensions & Utilities

• Refrigeration system: 55 in. W x 36 in. D x 32²⁄₅ in. H
• Walk-in freezer: 5 ft. 10¹⁄₈ in. W x 5 ft. 10⁵⁄₈ in. D x 7 ft. 7 in. H
• 10.42 A, ⁷⁄₈ HP
• 208-230 V/60 Hz/1 ph, includes 6-20R plug

Product Features

*Free shipping on Amerikooler QF060677**FBSM within the 48 contiguous states.

From The Manufacturer

Quick Ship Indoor Walk-In Freezer, 5′-10 5/8″ W x 5′-10 1/8″ L x 7′-7″ H, With Floor, 4” thick AK-XPS4 insulation providing R-29 for coolers & R-32 for freezers, 26 gauge stucco embossed corrosion resistant acrylic coated Acrylume on all interior & exterior surfaces, NSF aluminum floor rated at 600 Lbs./sq. ft. of uniformly distributed load, flush self-closing door, digital LED thermometer with pilot light switch, super cam-rise spring assisted hinges & door closer, -10°F, top mount, self-contained, indoor refrigeration, PT0042LBNEMSA, sized at 90°F ambient temperature, ships in 48 hours – subject to terms & conditions, UL, Made in USA (Note: Customers ordering this unit for installation in California, Florida, Oregon, and Washington may face state-specific restrictions on its use. Please contact SAH Kitchen Equipment Customer Care at 1-800-541-8683 for assistance.)

*Image may not depict product color, inclusions or accessories.
