Amerikooler QC101277**FBRC Description

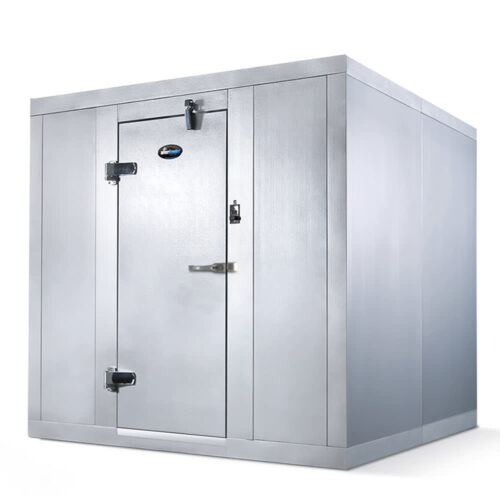

For businesses capable of dedicating indoor space to refrigeration, the Amerikooler QC101277**FBRC indoor walk-in cooler measures 11 feet 91⁄4 inches wide by 9 feet 93⁄4 inches deep by 7 feet 7 inches tall and includes floor panels. Because it’s a quick-ship unit, its designed with pre-engineered dimensions and requires field setup. To facilitate installation, it comes with a shop drawing, detailed installation instructions, a hex wrench for assembling the cam-lock panel, and PVC press fit caps.
Its wall, ceiling, and floor panels are comprised of rigid, 4-inch-thick AK-XPS4 foam insulation, which creates a sturdy structure and retains generated temperatures. Operators can attach the panels with the cam-action locking system and compression gaskets. While the wall and ceiling panel interiors and exteriors are laminated with corrosion-resistant, stucco-embossed 26-gauge Acrylume® coating, the floor panels feature a smooth aluminum finish. The flooring can support a uniformly distributed load of 600 pounds per square foot—enough to accommodate regular foot traffic. Users can enter and exit the cooler with the hinged, flush-mounted 76-inch-tall entrance door, which is built with super cam-rise spring-assisted hinges and a door closer for smooth opening and closing. Inside the unit, an LED light highlights the storage space, while a digital thermometer provides an accurate box temperature readout. After business hours, the door’s keyed deadbolt lock can deter theft and tampering. To minimize the risk of employees becoming trapped inside the cooler, the interior is equipped with a safety release mechanism.
The Amerikooler QC101277**FBRC walk-in cooler’s Heatcraft Bohn BCH0009MBACZA0000-BEL0105AS6AMAB0400 refrigeration system can produce and maintain a 35-degree-Fahrenheit box temperature using R-404A refrigerant. This remote, air-cooled system is built with microchannel condenser coils that reduce refrigerant consumption. So operators can access key interior components to perform maintenance, it features a removed, hinged E-box door. This 2463⁄100-inch-wide by 281⁄4-inch-deep by 193⁄4-inch-tall unit is made of painted steel for corrosion-resistant durability, and for enhanced efficiency, it shouldn’t be placed in ambient settings hotter than 95 degrees Fahrenheit.
Product Details
- Indoor configuration with floor
- Includes hardware and installation instruction kit with shop drawing, detailed installation instructions, hex wrench for cam-lock panel assembly, and PVC press fit caps
- Modular floor, wall, and ceiling panels can be connected with cam-action locking system and compression gaskets
- 4-in.-thick AK-XPS4 rigid foam insulation built into panels
- Insulation provides R-29 thermal resistance value at 55 degrees F
- Interior and exterior wall and ceiling panels laminated with stucco-embossed, corrosion-resistant 26-ga. Acrylume coating
- Floor panels finished with smooth aluminum
- Floor can accommodate evenly distributed load of 600 lbs. per square foot
- 30-in.-wide x 76-in.-tall swing-type, flush-mount entrance door
- 2 super cam-rise spring-assisted hinges for smooth door movement
- Door closer, 3-sided magnetic gasket, and flexible double wiper securely seal door
- Deadbolt key/padlock handle with safety inside release
- Center-mounted LED light with corresponding safety pilot light switch
- Digital thermometer
- Conduit between switch box and outlet junction box
Refrigeration System
- Heatcraft Bohn BCH0009MBACZA0000-BEL0105AS6AMAB0400 remote condensing unit and electronically commutated motor
- Air-cooled design
- Maximum ambient temperature: 95 degrees F
- Produces and maintains box temperature of 35 degrees F
- R-404A refrigerant
- Microchannel coil technology reduces energy and refrigerant consumption
- Corrosion-resistant painted steel construction with heavy-duty steel base
- Removable, hinged E-box door features captive fasteners
- Head pressure control valve
- Crankcase heater
- Adjustable low-pressure control and fixed high-pressure control
- Sealed liquid-line drier
- Liquid-line sight glass
- Liquid-line and section-line base valves
- Ships prewired and preassembled
Dimensions & Utilities
- Refrigeration system: 2463⁄100 in. W x 281⁄4 in. D x 193⁄4 in. H
- Walk-in cooler: 11 ft. 91⁄4 in. W x 9 ft. 93⁄4 in. D x 7 ft. 7 in. H
- 35 A, 7⁄8 HP
- 208-230 V/60 Hz/1 ph
Product Features
*Free shipping on Amerikooler QC101277**FBRC within the 48 contiguous states.
From The Manufacturer
Quick Ship Indoor Walk-In Cooler, 9′-9 3/4″ W x 11′-9 1/4″ L x 7′-7″ H, With Floor, 4” thick AK-XPS4 insulation providing R-29 for coolers & R-32 for freezers, 26 gauge stucco embossed corrosion resistant acrylic coated Acrylume on all interior & exterior surfaces, NSF aluminum floor rated at 600 Lbs./sq. ft. of uniformly distributed load, flush self-closing door, digital LED thermometer with pilot light switch, super cam-rise spring assisted hinges & door closer, Bohn outdoor remote refrigeration, 35°F, 7/8 HP, BCH0009MBACZA0000-BEL0105AS6AMAB0400 with EC motor, sized at 95°F ambient temperature, ships in 48 hours – subject to terms & conditions, UL, Made in USA (Note: Customers ordering this unit for installation in California, Florida, Oregon, and Washington may face state-specific restrictions on its use. Please contact SAH Kitchen Equipment Customer Care at 1-800-541-8683 for assistance.)
*Image may not depict product color, inclusions or accessories.
Certifications
This product meets the safety standards set by UL.
