Amerikooler QC101272**NBRC Description

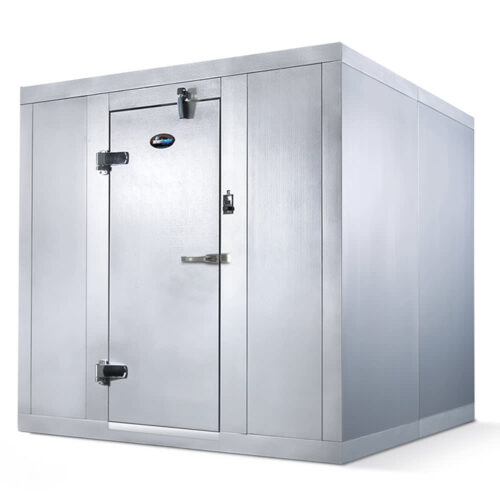

Ideal for establishments with available level tile or concrete flooring, the Amerikooler QC101272**NBRC indoor walk-in cooler is a floorless quick-ship model measuring 11 feet 91⁄4 inches wide by 9 feet 93⁄4 inches deep by 7 feet 21⁄4 inches tall. Although it ships unassembled, it comes with an installation kit that includes instructions, a shop drawing, hex wrench for cam-lock panel assembly, and PVC press fit caps to facilitate setup. Its modular wall and ceiling panels can be connected with its cam-action locking system and compression gaskets for a secure, airtight fit. Both panels are comprised of 4-inch-thick AK-XPS4 insulation that establishes a sturdy structure and provides R-29 thermal resistance in 55-degree-Fahrenheit environments to retain generated temperatures. For durability, the panel interiors and exteriors are laminated with stucco-embossed 26-gauge Acrylume® zinc aluminum, which is coated with corrosion-resistant acrylic paint.
To maintain a box temperature of 35 degrees Fahrenheit, the Amerikooler QC101272**NBRC walk-in cooler comes with the Heatcraft Bohn BCH0009MBACZA0000-BEL0105AS6AMAB0400 remote refrigeration system with an electronically commutated (EC) motor. This air-cooled unit should be installed in areas that don’t exceed 95 degrees Fahrenheit to enhance efficiency, and to facilitate installation, it ships preassembled and prewired. Its 2463⁄100-inch-wide by 281⁄4-inch-deep by 193⁄4-inch-tall painted steel cabinet resists corrosion and features a hinged door that can be removed without tools for access to interior components when maintenance is required. Like other Heatcraft Bohn condensing units, this system comes with microchannel coils that reduce refrigerant usage and energy consumption.
Staff can access the walk-in’s interior via the 76-inch-tall hinged, flush-mounted entrance door, while its spring-assisted cam-rise hinges can be adjusted to ensure the door opens smoothly. To reduce the chance of temperature fluctuations and deter pests, the door is built with a door closer and three-sided magnetic gaskets to ensure a secure closure. Inside the walk-in, an LED light is center-mounted above the door jamb to illuminate the area and provide full visibility of inventory; its digital thermometer provides an easy-to-read LED display. Rather than floor panels, this unit includes a 1⁄2-inch-radius vinyl screed that can be lag fastened to the floor. The door’s keyed deadbolt handle can be locked during non-business hours, and to provide a way for users to exit the cooler, a safety release mechanism is built into the box.
Product Details
- Floorless indoor configuration
- Interconnecting wall and ceiling panels with cam-action locking system and compression gaskets
- Panels comprised of 4-in.-thick AK-XPS4 rigid foam insulation
- Insulation provides R-29 thermal resistance value at 55 degrees F
- Stucco-embossed, corrosion-resistant 26-ga. Acrylume protective coating on panel interiors and exteriors
- Included vinyl screed can be lag fastened to floor
- 30-in.-wide x 76-in.-tall swing-type, flush-mount entrance door
- 2 super cam-rise spring-assisted hinges, deadbolt key/padlock handle with safety inside release, 3-sided magnetic gasket, door closer, and flexible double wiper
- LED light above door jamb
- Digital thermometer features safety pilot light switch
- Conduit between switch box and outlet junction box
- Includes hardware and installation instruction kit with shop drawing, detailed installation instructions, hex wrench for cam-lock panel assembly, and PVC press fit caps
Refrigeration System
- Includes the Heatcraft Bohn BCH0009MBACZA0000-BEL0105AS6AMAB0400 remote condensing unit and EC motor
- Maximum ambient temperature: 95 degrees F
- Maintains 35-degree-F box temperature
- R-404A refrigerant
- Ships prewired and preassembled
- Corrosion-resistant painted steel construction with heavy-duty steel base
- Removable, hinged E-box door with captive fasteners
- Microchannel coil technology reduces energy and refrigerant usage
- Head pressure control valve
- Crankcase heater
- Adjustable low-pressure control and fixed high-pressure control
- Sealed liquid-line drier
- Liquid-line sight glass
- Liquid-line and section-line base valves
Dimensions & Utilities
- Refrigeration system: 2463⁄100 in. W x 281⁄4 in. D x 193⁄4 in. H
- Walk-in cooler: 11 ft. 91⁄4 in. W x 9 ft. 93⁄4 in. D x 7 ft. 7 in. H
- 35 A, 7⁄8 HP
- 208-230 V/60 Hz/1 ph
Product Features
*Free shipping on Amerikooler QC101272**NBRC within the 48 contiguous states.
From The Manufacturer
Quick Ship Indoor Walk-In Cooler, 9′-9 3/4″ W x 11′-9 1/4″ L x 7′-2 1/4″ H, Without Floor, 4” thick AK-XPS4 insulation providing R-29 for coolers and R-32 for freezers, ceiling & doors, insulation with 50 Year R-value warranty, 26 gauge stucco embossed corrosion resistant acrylic coated Acrylume on all interior & exterior surfaces, NSF vinyl screed, flush self-closing door, digital LED thermometer with pilot light switch, super cam-rise spring assisted hinges & door closer, Bohn outdoor remote refrigeration, 35°F, 7/8 HP, BCH0009MBACZA0000-BEL0105AS6AMAB0400 with EC motor, sized at 95°F ambient temperature, ships in 48 hours – subject to terms & conditions, UL, Made in USA (Note: Customers ordering this unit for installation in California, Florida, Oregon, and Washington may face state-specific restrictions on its use. Please contact SAH Kitchen Equipment Customer Care at 1-888-574-0170 for assistance.)
*Image may not depict product color, inclusions or accessories.
Certifications
This product meets the safety standards set by UL.
