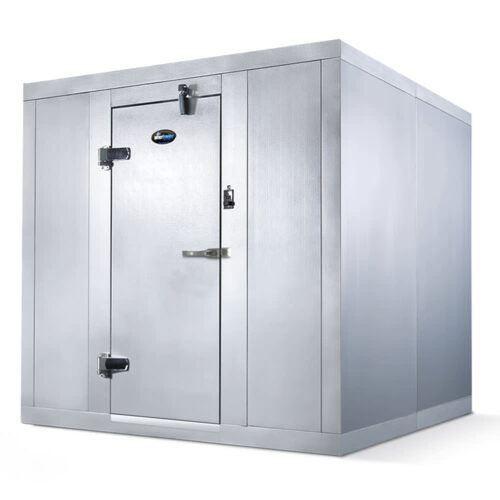

Amerikooler QC101072**NBRC 10' x 10' Indoor Walk-In Cooler w/ Remote Compressor - No Floor

To dedicate a specific area to storing meat, dairy, vegetables, and other perishables in a safe environment, the Amerikooler QC101072**NBRC indoor walk-in cooler is a quick-ship unit measuring 9 feet 9¹⁄₄ inches wide by 9 feet 9³⁄₄ inches deep by 7 feet 2¹⁄₄ inches tall. For setup simplicity, this unit comes with a hardware and installation kit that includes a shop drawing, detailed installation instructions, hex wrench, and PVC press fit caps. Because the wall and ceiling panels are made of AK-XPSP4 rigid foam insulation, they establish a sturdy structure and provide an R-29 thermal resistance value to enhance energy efficiency. Operators can attach the panels using the corrosion-resistant cam-action locking system, while its compression gaskets create airtight joints. For lasting durability and corrosion resistance, the wall and ceiling panels’ interiors and exterior are laminated with stucco-embossed, 26-gauge Acrylume®-coated steel. Instead of floor panels, it includes a vinyl screed and should be placed on smooth tile or concrete.

This walk-in cooler is built with a swing-type 76-inch-tall entrance door featuring two super cam-rise spring-assisted hinges for smooth opening and a door closer to ensure the door fully closes. For a positive seal, it’s also equipped with a three-sided magnetic gasket and a flexible double wiper along the bottom edge. Inside the unit, an LED light positioned above the door jamb illuminates the area. Operators can quickly gauge interior temperatures with the digital LED thermometer, ensuring box controls are within the set range. After business hours, the deadbolt keyed handle latch can be locked, and to reduce the risk of staff becoming trapped inside, the handle features an inside safety release mechanism.

To maintain an interior temperature of 35 degrees Fahrenheit, the Amerikooler QC101072**NBRC floorless walk-in cooler operates with the included Heatcraft Bohn BCH0008MBACZA0000-BEL0095AS6AMAB0400 remote condensing unit and electronically commutated (EC) motor. This unit features microchannel coil technology to reduce refrigerant and energy usage, and to facilitate setup, it ships prewired and preassembled. For efficiency, it should be installed in areas that don’t exceed 95 degrees Fahrenheit.

Product Details

• For indoor placement
• Wall and ceiling panels with corrosion-resistant cam-action locking system and compression gasket
• Interior and exterior panels finished with stucco-embossed, corrosion-resistant 26-ga. Acrylume protective coating
• 4-in.-thick AK-XPS4 rigid foam insulation permanently bonded to interior and exterior metal skin
• Insulation provides R-29 thermal resistance value at 55-degree-F mean temperature
• Floor not included (comes with vinyl screed)
• 30-in.-wide x 76-in.-tall swing-type entrance door
• Door features 2 adjustable spring-assisted hinges, deadbolt key/padlock handle with safety inside release, magnetic gasket, door closer, and double-sweep swiper
• Door jamb with center-mounted LED light, digital thermometer, safety pilot light switch, and conduit between switch box and outlet junction box
• Includes hardware and installation instruction kit with shop drawing, detailed installation instructions, hex wrench for cam-lock panel assembly, and PVC press fit caps

Refrigeration System

• Includes the Heatcraft Bohn BCH0008MBACZA0000-BEL0095AS6AMAB0400 remote condensing unit and EC motor
• Ships prewired and preassembled to ease setup
• Maximum ambient temperature: 95 degrees F
• Can generate and maintain 35 degrees F inside cooler
• R-404A refrigerant
• Microchannel coil technology minimizes refrigerant and energy usage
• Head pressure control valve
• Crankcase heater
• Adjustable low-pressure control and fixed high-pressure control
• Sealed liquid-line drier
• Liquid-line sight glass
• Liquid-line and section-line base valves
• Made of painted steel for lasting corrosion-resistant durability
• Heavy-duty steel base
• Removable, hinged E-box door with captive fasteners

Dimensions & Utilities

• Refrigeration system: 24⁶³⁄₁₀₀ in. W x 28¹⁄₄ in. D x 19³⁄₄ in. H
• Walk-in cooler: 9 ft. 9¹⁄₄ in. W x 9 ft. 9³⁄₄ in. D x 7 ft. 2¹⁄₄ in. H
• 35 A, ³⁄₄ HP
• 208-230 V/60 Hz/1 ph

Product Features

*Free shipping on Amerikooler QC101072**NBRC within the 48 contiguous states.

From The Manufacturer

Quick Ship Indoor Walk-In Cooler, 9′-9 3/4″ W x 9′-9 1/4″ L x 7′-2 1/4″ H, Without Floor, 4” thick AK-XPS4 insulation providing R-29 for coolers and R-32 for freezers, ceiling & doors, insulation with 50 Year R-value warranty, 26 gauge stucco embossed corrosion resistant acrylic coated Acrylume on all interior & exterior surfaces, NSF vinyl screed, flush self-closing door, digital LED thermometer with pilot light switch, super cam-rise spring assisted hinges & door closer, Bohn outdoor remote refrigeration, 35°F, 3/4 HP, BCH0008MBACZA0000-BEL0095AS6AMAB0400 with EC motor, sized at 95°F ambient temperature, ships in 48 hours – subject to terms & conditions, UL, Made in USA (Note: Customers ordering this unit for installation in California, Florida, Oregon, and Washington may face state-specific restrictions on its use. Please contact SAH Kitchen Equipment Customer Care at 1-800-541-8683 for assistance.)
