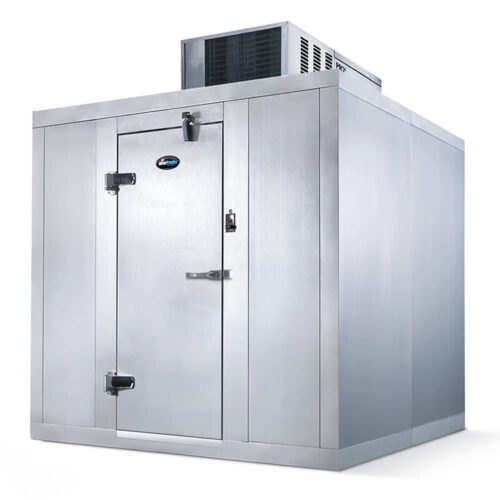

Amerikooler QC081277**FBSC-O 8' x 12' Outdoor Walk-In Cooler w/ Top-Mounted Compressor - Floor

The Amerikooler QC081277**FBSC-O walk-in outdoor cooler maintains an interior temperature of 35 degrees Fahrenheit in 90-degree-Fahrenheit ambient settings with the Heatcraft Bohn PT0097MBTAMSA PRO³ packaged top-mounted refrigeration system. This 55-inch-wide by 36-inch-deep by 32²⁄₄-inch-tall piece of equipment combines a unit cooler and condensing unit to simplify installation and reduce the required refrigerant charge. It’s designed to be mounted on the top of the cooler to maximize interior space, and it ships fully assembled, evacuated, charged, run tested, and wired.

Although this cooler ships unassembled, it can be set up with ease using the included hardware and installation instruction kit and tongue-and-groove wall, ceiling, and floor panels. The panels feature a corrosion-resistant cam-action locking system and compliant compression gasket to create an airtight structure. Each panel is made of permanently bonded, water-resistant AK-XPS4 rigid foam insulation that maintains an R-29 thermal resistance value. The wall and ceiling panel interior and exteriors are finished with 26-gauge, stucco-embossed Acrylume®, or GALVALUME® coated with corrosion-resistant acrylic paint. To support general foot traffic, the 4-inch-thick floor panels are made of smooth aluminum and accommodate 600 pounds of evenly distributed weight per square foot. Once fully assembled, it measures 7 feet 10 inches wide by 11 feet 9¹⁄₄ inches deep by 7 feet 7 inches tall.

Inside the Amerikooler QC081277**FBSC-O walk-in cooler, an LED light fixture is center mounted on the door jamb to brighten the space. Operators can manage interior temperatures with the digital LED thermometer, which provides an easy-to-read display. The elbowed pilot on/off light switch enables staff to turn the unit’s light on and off with shoulders, elbows, or other parts of the arm for convenience when hands are full. The 76-inch-tall entrance door features two super cam-rise hinges with a ⁵⁄₈-inch lift to prevent the door from dragging and reduce gasket wear. So the door closes securely, it’s built with a door closer and three-sided magnetic gasket. If users become locked inside the unit, they can open the door from the inside with the interior safety lock release handle.

Product Details

• For outdoor use
• Includes a hardware and installation instruction kit to ease setup
• Modular, tongue-and-groove wall, ceiling, and floor panels with cam-action locking system and compression gaskets
• Water-resistant, closed-cell 4-in.-thick AK-XPS4 rigid foam insulation built into panels
• Insulation creates R-29 thermal resistance value
• 26-ga. corrosion-resistant Acrylume laminate with stucco embossments
• Smooth, ¹⁄₂₀-in.-thick aluminum flooring accommodates an evenly distributed load of 600 lbs. per square foot
• 76-in.-tall entrance door
• 2 heavy-duty super cam-rise spring-assisted door hinges
• 3-sided magnetic gasket, door closer, and double wiper
• Deadbolt keyed handle latch with interior safety lock release handle
• Center-mounted LED light
• Digital LED thermometer
• Safety pilot light on/off switch
• Conduit between switch box and outlet junction box
• Includes rain roof package
• Requires assembly

Refrigeration System

• Includes Heatcraft Bohn PT0097MBTAMSA top-mounted refrigeration system
• Ships packaged, fully assembled, evacuated, charged, run-tested, and wired to simplify installation
• For installation on top of walk-in cooler
• Self-contained
• R-448A refrigerant
• Can maintain 35-degree-F interior temperature
• Maximum ambient temperature: 90 degrees F
• Air defrost system

Dimensions & Utilities

• Refrigeration system: 55 in. W x 36 in. D x 32²⁄₅ in. H
• Walk-in cooler: 7 ft. 10 in. W x 11 ft. 9¹⁄₄ in. D x 7 ft. 7 in. H
• 8.24 A
• 208-230 V/60 Hz/1 ph, NEMA 6-15R plug

Product Features

*Free shipping on Amerikooler QC081277**FBSC-O within the 48 contiguous states.

From The Manufacturer

Outdoor Quick Ship Walk-in Cooler, 7′-10″ W x 11′-9 1/4″ L x 7′-7″ H, With Floor, 4” thick AK-XPS4 insulation providing R-29 for coolers & R-32 for freezers, 26 gauge stucco embossed corrosion resistant Acrylume on all interior & exterior surfaces, NSF aluminum floor rated at 600 Lbs./sq. ft. of uniformly distributed load, flush self-closing door with keyed heavy-duty deadbolt handle latch, digital LED thermometer with pilot light switch, super cam-rise spring assisted hinges & door closer, prewired vapor proof light fixture, 35°F, top mount, self-contained, Outdoor refrigeration, PT0097MBTAMSA, sized at 90°F ambient temperature, ships in 48 hours – subject to terms & conditions, UL, Made in USA (Note: Customers ordering this unit for installation in California, Florida, Oregon, and Washington may face state-specific restrictions on its use. Please contact SAH Kitchen Equipment Customer Care at 1-800-541-8683 for assistance.)
