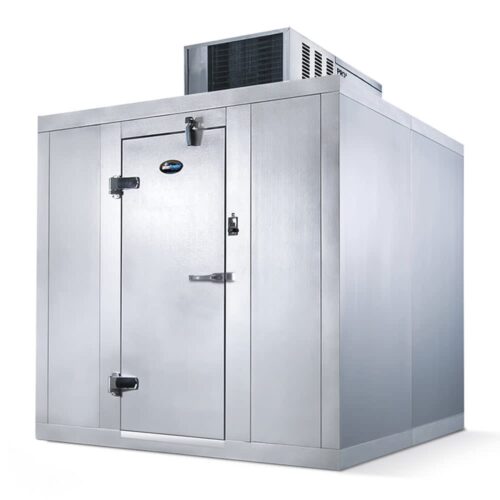

Amerikooler QC081077**FBSC-O 8' x 10' Outdoor Walk-In Cooler w/ Top-Mounted Compressor - Floor

The Amerikooler QC081077**FBSC-O outdoor walk-in cooler measures 7 feet 10 inches wide by 9 feet 9¹⁄₄ inches deep by 7 feet 7 inches tall and ships disassembled. To ease setup, it comes with an installation kit that includes a shop drawing, detailed installation instruction, hex wrench, and PVC press fit caps. This quick-ship unit is comprised of tongue-and-groove panels featuring a corrosion-resistant cam-action locking system and a compression gasket to create a rigid structure when attached. Each panel is made of 4-inch-thick AK-XPS4 rigid foam insulation that resists water damage, maintains an R-29 thermal resistance over time, and is permanently bonded to the primed metal surface to create a rigid structure. For lasting durability and corrosion resistance, the wall and ceiling panel interiors and exterior are laminated with 26-gauge Acrylume®—zinc-aluminum coated steel—coated with an acrylic paint.

The swing-type entrance door grants access to the unit’s interior, and to ensure it’s fully closed, it features a three-sided magnetic gasket and double wiper along the bottom edge. Its heavy pull handle features an inside safety release mechanism that ensures staff members can open the door from the inside. The door jamb is equipped with an LED light that brightens the interior and a digital LED thermometer that provides a large temperature readout. Smooth aluminum floor panels measuring ¹⁄₂₀ of an inch thick accommodate an evenly distributed load of 600 pounds per square foot—ideal for foot traffic. To ease cleaning, a ¹⁄₂-inch radius cove lines the floor’s perimeter.

The Amerikooler QC081077**FBSC-O walk-in cooler accommodates the Heatcraft Bohn PT0078MBTAMSA PRO³ packaged top-mount refrigeration system. This 58-inch-wide by 39-inch-deep by 37³⁄₄-inch-tall unit can be installed on top of the cooler so it won’t take up storage space inside the unit. To ease setup, it ships fully assembled, evacuated, charged, run-tested, and wired. Able to operate in ambient temperatures as hot as 90 degrees Fahrenheit, it can generate and maintain a 35-degree-Fahrenheit interior using R-448A refrigerant.

Product Details

• For outdoor use
• Includes hardware and installation instruction kit to expedite setup
• Wall, ceiling, and floor panels made up of 4-in.-thick closed-cell, water-resistant AK-XPS4 rigid foam
• Insulation provides R-29 thermal resistance
• Corrosion-resistant cam-action locking system
• Compression gasket creates airtight joints
• 26-ga. stucco-embossed, corrosion-resistant Acrylume finish on interior and exterior ceiling and wall panels
• Smooth, ¹⁄₂₀-in.-thick aluminum floor can support an evenly distributed load of 600 lbs. per square foot
• 76-in.-tall self-closing entrance door
• 2 heavy-duty super cam-rise spring-assisted door hinges
• 3-sided magnetic gasket, door closer, and double wiper ensure secure close
• Heavy pull handle includes key lock and inside safety release
• Center-mounted LED light fixture on door jamb
• Digital LED thermometer with safety pilot light on/off switch
• Conduit between switch box and outlet junction box
• Includes rain roof package
• Requires assembly

Refrigeration System

• Includes Heatcraft Bohn PT0078MBTAMSA top-mounted refrigeration system
• Ships packaged, fully assembled, evacuated, charged, run-tested, and wired
• For installation on top of cooler
• Self-contained
• R-448A refrigerant
• Can maintain 35-degree-F interior temperature
• Can operate in temperatures as hot as 90 degrees F
• Air defrost system

Dimensions & Utilities

• Refrigeration system: 58 in. W x 39 in. D x 37³⁄₄ in. H
• Walk-in cooler: 7 ft. 10 in. W x 9 ft. 9¹⁄₄ in. D x 7 ft. 7 in. H
• 8.24 A
• 208-230 V/60 Hz/1 ph

Product Features

*Free shipping on Amerikooler QC081077**FBSC-O within the 48 contiguous states.

From The Manufacturer

Outdoor Quick Ship Walk-in Cooler, 7′-10″ W x 9′-9 1/4″ L x 7′-7″ H, With Floor, 4” thick AK-XPS4 insulation providing R-29 for coolers & R-32 for freezers, 26 gauge stucco embossed corrosion resistant Acrylume on all interior & exterior surfaces, NSF aluminum floor rated at 600 Lbs./sq. ft. of uniformly distributed load, flush self-closing door with keyed heavy-duty deadbolt handle latch, digital LED thermometer with pilot light switch, super cam-rise spring assisted hinges & door closer, prewired vapor proof light fixture, 35°F, top mount, self-contained, Outdoor refrigeration, PT0078MBTAMSA, sized at 90°F ambient temperature, ships in 48 hours – subject to terms & conditions, UL, Made in USA (Note: Customers ordering this unit for installation in California, Florida, Oregon, and Washington may face state-specific restrictions on its use. Please contact SAH Kitchen Equipment Customer Care at 1-800-541-8683 for assistance.)

*Image may not depict product color, inclusions or accessories.
