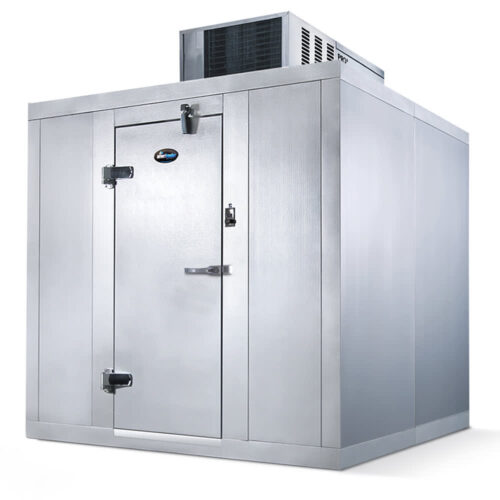

Amerikooler QC061277**FBSC-O 6' x 12' Outdoor Walk-In Cooler w/ Top-Mounted Compressor - Floor

Designed for outdoor placement, the Amerikooler QC061277**FBSC-O walk-in cooler measures 5 feet 10⁵⁄₈ inches wide by 11 feet 9¹⁄₄inches deep by 7 feet 7 inches tall and features stucco-embossed, corrosion-resistant Acrylume® interior and exterior walls. Staff can assemble the wall, ceiling, and floor panels using the included installation kit, and to form rigid, airtight joints, the panels feature compression gaskets and a corrosion-resistant cam-action locking system. To create a structurally rigid panel and retain cool temperatures in warm ambient settings, 4-inch-thick AK-XPS4 insulation is permanently bonded to the interior and exterior metal skin.

Staff can access the cooler’s interior by opening the 76-inch-tall swing entrance door that self-closes and sits flush against the rest of the unit for a sleek appearance. For a secure, tight close, it comes with a door closer and three-sided magnetic gasket. The door jamb features an LED light fixture, digital thermometer, safety pilot light switch, and conduit between switch box and outlet junction box. If a staff member becomes locked inside the unit, they can safely exit using the deadbolt key handle’s safety inside release. Designed to support foot traffic, the ¹⁄₂₀-inch-thick aluminum floor is rated to support a uniformly distributed 600 pounds per square foot.

The Amerikooler QC061277**FBSC-O outdoor walk-in cooler includes the Heatcraft PT0078MBTAMSA PRO³ packaged top-mount refrigeration system, which ships fully assembled and wired with a unit cooler and condensing unit to minimize installation time and reduce refrigerant usage. Operators can install this 58-inch-wide by 39-inch-deep by 37³⁄₄-inch-tall condensing unit on top of the overall unit, and this piece of equipment uses R-448A refrigerant to generate and maintain 35 degrees Fahrenheit inside the box. To preserve these temperatures, ambient air shouldn’t exceed 90 degrees Fahrenheit.

Product Details

• Outdoor unit
• Modular wall, ceiling, and floor panels
• Corrosion-resistant cam-action locking system and compression gasket for airtight joints
• Included installation kit simplifies setup
• 4-in.-thick AK-XPS4 insulation permanently bonded to interior and exterior metal skin
• R-29 insulation value at 55-degree-F mean temperature
• Smooth ¹⁄₂₀-in.-thick aluminum floor accommodates uniformly distributed load of 600 lbs. per square foot
• 76-in.-tall swing-type entrance door
• Door features 2 adjustable spring-assisted hinges, magnetic gasket, and door closer
• Deadbolt keyed handle with safety inside release
• Double-sweep wiper at door’s base
• Door jamb features center-mounted LED light fixture, digital thermometer, safety pilot light switch, and conduit between switch box and outlet junction box
• 26-ga. stucco-embossed, corrosion-resistant Acrylume interior and exterior wall, ceiling, and floor panel exterior
• Includes rain roof package
• Ships disassembled

Refrigeration System

• Heatcraft PT0078MBTAMSA PRO³ top-mounted refrigeration system
• Ships packaged, fully assembled, and wired
• For placement on a walk-in box
• Required ambient temperature: 90 degrees F
• Can generate 35 degrees F in box
• R-448A refrigerant
• Air defrost

Dimensions & Utilities

• Refrigeration system: 58 in. W x 39 in. D x 37³⁄₄ in. H
• Walk-in cooler: 11 ft. 9¹⁄₄ in. W x 5 ft. 10 ⁵⁄₈ in. D x 7 ft. 7 in. H
• 8.24 A
• 208-230 V/60 Hz/1 ph

Product Features

*Free shipping on Amerikooler QC061277**FBSC-O within the 48 contiguous states.

From The Manufacturer

Outdoor Quick Ship Walk-in Cooler, 5′-10 5/8″ W x 11′-9 1/4″ L x 7′-7″ H, With Floor, 4” thick AK-XPS4 insulation providing R-29 for coolers & R-32 for freezers, 26 gauge stucco embossed corrosion resistant Acrylume on all interior & exterior surfaces, NSF aluminum floor rated at 600 Lbs./sq. ft. of uniformly distributed load, flush self-closing door with keyed heavy-duty deadbolt handle latch, digital LED thermometer with pilot light switch, super cam-rise spring assisted hinges & door closer, prewired vapor proof light fixture, 35°F, top mount, self-contained, Outdoor refrigeration, PT0078MBTAMSA, sized at 90°F ambient temperature, ships in 48 hours – subject to terms & conditions, UL, Made in USA (Note: Customers ordering this unit for installation in California, Florida, Oregon, and Washington may face state-specific restrictions on its use. Please contact SAH Kitchen Equipment Customer Care at 1-800-541-8683 for assistance.)

*Image may not depict product color, inclusions or accessories.
