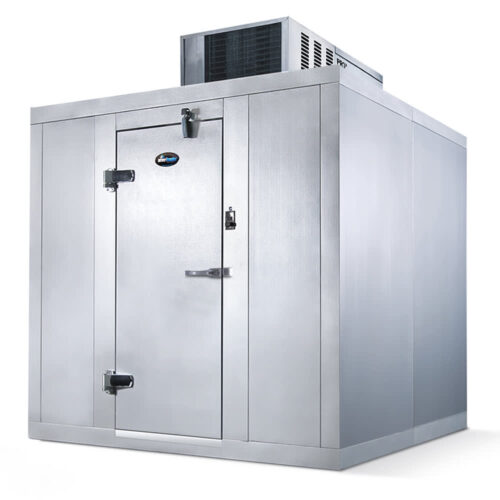

Amerikooler QC060872**NBSC 6' x 8' Indoor Walk-In Cooler w/ Top-Mounted Compressor - No Floor

The Amerikooler QC060872**NBSC indoor walk-in cooler is a quick-ship unit measuring 5 feet 10⁵⁄₈ inches wide by 7 feet 9¹⁄₄ inches deep by 7 feet 2¹⁄₄ inches tall. Although it ships unassembled, it can be installed quickly using the included hardware and installation instruction kit. Staff can connect the panels’ cam-action locking system to compression gaskets to create an airtight joint. To conserve energy and maintain generated temperatures, each panel is insulated with 4-inch-thick closed-cell, water-resistant AK-XPS4 rigid foam, which is permanently bonded to the interior and exterior metal skin. All interior and exterior surfaces are laminated with a 26-gauge, stucco-embossed, corrosion-resistant Acrylume® protective coating.

This walk-in cooler is built with a 76-inch-tall swing-type entrance door that’s flush with the rest of the unit for a seamless appearance. For smooth opening and secure closing, it features two adjustable spring-assisted hinges, a magnetic gasket, a door closer, and a double-sweep wiper at the bottom edge. To prevent users from locking themselves inside the unit, it features a deadbolt keyed padlock handle latch with an inside release. The door jamb is fitted with a center-mounted LED light fixture, digital thermometer, pilot light switch, and a conduit between the switch box and outlet junction box. Because this unit is floorless, it comes with vinyl screed that can be lag fastened to a finished tile or concrete floor.

To ensure meat, vegetables, dairy products, beverages, and other perishables are stored in safe temperatures, the Amerikooler QC060872**NBSC indoor features a Heatcraft Bohn PT0068MBNAMSA refrigeration system with a self-contained, top-mounted condenser, and to expedite installation, this condenser ships fully assembled and wired. It operates with R-448A to maintain a 35-degree-Fahrenheit box temperature and is designed to be operated in a maximum ambient temperature of 90 degrees Fahrenheit.

Product Details

• For indoor placement
• Modular wall and ceiling panels feature corrosion-resistant cam-action locking system and compression gasket
• Interior and exterior panels finished with 26-ga. stucco-embossed, corrosion-resistant Acrylume
• 4-in.-thick AK-XPS4 rigid foam insulation permanently bonded to interior and exterior metal skin
• Insulation provides R-29 value at 55-degree-F mean temperature
• Floor not included (comes with vinyl screed)
• 76-in.-tall swing-type entrance door
• Door features 2 adjustable spring-assisted hinges, deadbolt key/padlock handle with safety inside release, magnetic gasket, door closer, and double-sweep swiper at door’s base
• Door jamb includes center-mounted LED light, digital thermometer, safety pilot light switch, and conduit between switch box and outlet junction box
• Assembly required

Refrigeration System

• Features the Heatcraft Bohn PT0068MBNAMSA PRO³ top-mounted refrigeration system
• Self-contained
• Air defrost
• Ships packaged, fully assembled, and wired
• For placement on top of walk-in box
• Maximum ambient temperature: 90 degrees F
• Can generate and maintain 35 degrees F inside cooler
• R-448A refrigerant

Dimensions & Utilities

• Refrigeration system: 55 in. W x 36 in. D x 32²⁄₅ in. H
• Walk-in cooler: 5 ft. 10⁵/₁₀ in. W x 7 ft. 9¹⁄₄ in. D x 7 ft. 2¹⁄₄ in. H
• 7.98 A
• 208-230 V/60 Hz/1 ph, NEMA 6-15R plug

Product Features

*Free shipping on Amerikooler QC060872**NBSC within the 48 contiguous states.

From The Manufacturer

Quick Ship Indoor Walk-In Cooler, 5′-10 5/8″ W x 7′-9 1/4″ L x 7′-2 1/4″ H, Without Floor, 4” thick AK-XPS4 insulation providing R-29 for coolers and R-32 for freezers, ceiling & doors, insulation with 50 Year R-value warranty, 26 gauge stucco embossed corrosion resistant acrylic coated Acrylume on all interior & exterior surfaces, NSF vinyl screed, flush self-closing door, digital LED thermometer with pilot light switch, super cam-rise spring assisted hinges & door closer, 35°F, top mount, self-contained, indoor refrigeration, PT0068MBNAMSA, sized at 90°F ambient temperature, ships in 48 hours – subject to terms & conditions, UL, Made in USA (Note: Customers ordering this unit for installation in California, Florida, Oregon, and Washington may face state-specific restrictions on its use. Please contact SAH Kitchen Equipment Customer Care at 1-800-541-8683 for assistance.)

*Image may not depict product color, inclusions or accessories.
